Simulation of Thermal Tuning in V-coupled Cavity Laser with an On-chip Thin-film Heater
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)341-345
Abstract

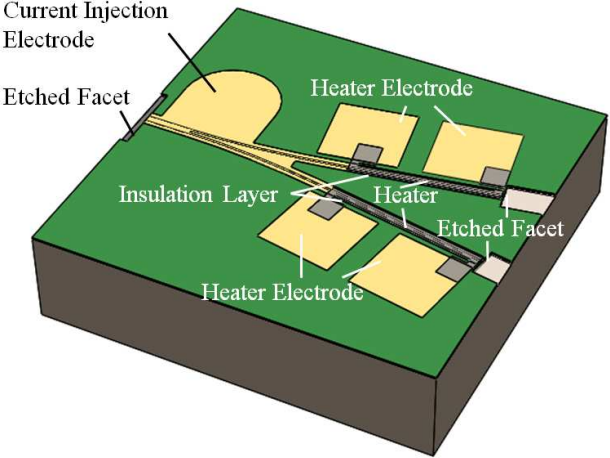

We present the design and simulation results of a thermally tuned V-coupled cavity laser (VCCL) with an on-chip heater. A thermal model based on finite-element method (FEM) is developed to calculate the transient and steady-state temperature distribution in the laser. The wavelength tuning behavior is simulated. The compact gratingless widely-tunable semiconductor laser is promising for reconfigurable optical networks as well for laser sensing.
Citation
Jian-Jun He, Haoyu Deng, and Jianjun Meng, "Simulation of Thermal Tuning in V-coupled Cavity Laser with an On-chip Thin-film Heater," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)341-345
References

1. He, J.-J. and D. Liu, "Wavelength switchable semiconductor laser using half-wave V-coupled cavities," Optics Express, Vol. 16, No. 6, 3896-3911, 2008.
doi:10.1364/oe.16.003896        Google Scholar

2. Jin, J., L. Wang, T. Yu, Y. Wang, and J.-J. He, "Widely wavelength switchable V-coupled cavity semiconductor laser with ∼40 dB side-mode suppression ratio," Optics Letters, Vol. 36, No. 21, 4230-4232, 2011.
doi:10.1364/ol.36.004230        Google Scholar

3. Zhang, S., J. Meng, S. Guo, L. Wang, and J.-J. He, "Simple and compact V-cavity semiconductor laser with 50 × 100 GHz wavelength tuning," Optics Express, Vol. 21, No. 11, 13564-13571, 2013.
doi:10.1364/oe.21.013564        Google Scholar

4. Wei, W., H. Deng, and J.-J. He, "GaAs/AlGaAs based 870 nm-band widely tunable edgeemitting V-cavity laser," IEEE Photonics Journal, Vol. 5, No. 5, 2013.
doi:10.1109/jphot.2013.2281616        Google Scholar

5. Sakano, S., T. Tsuchiya, M. Suzuki, S. Kitajima, and N. Chinone, "Tunable DFB laser with a striped thin-film heater," IEEE Photonics Technology Letters, Vol. 4, No. 4, 321-323, 1992.
doi:10.1109/68.127200        Google Scholar

6. Wang, H. and Y. Yu, "New theoretical model to analyze temperature distribution and influence of thermal transients of an SG-DBR laser," IEEE Journal of Quantum Electronics, Vol. 48, No. 2, 107-113, 2012.
doi:10.1109/jqe.2011.2167501        Google Scholar

7. Tanaka, S., A. Uetake, S. Yamazaki, M. Ekawa, and K. Morito, "Output level control of SOA using on-chip heater for high output power operation," IEEE Journal of Lightwave Technology, Vol. 28, No. 17, 2477-2482, 2010.
doi:10.1109/jlt.2010.2053697        Google Scholar
