Broadband Circularly Polarized Loop Antenna Based on High-pass and Low-pass Filters for Handheld RFID Reader Applications
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)500-503
Abstract

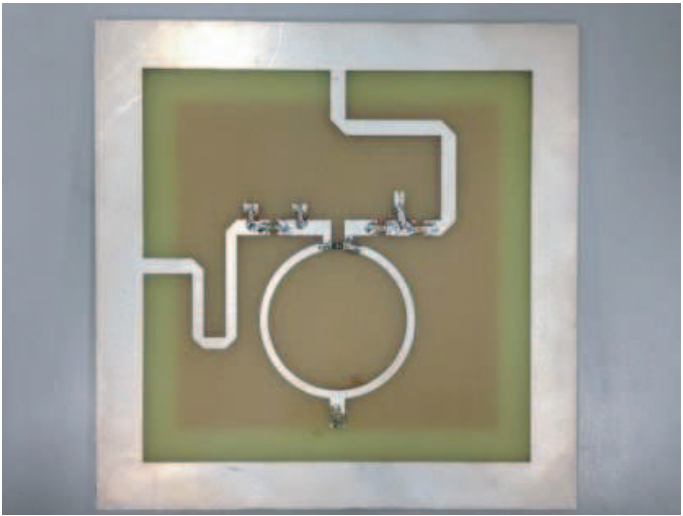

Recent researches on portable circularly polarized (CP) Radio Frequency Identi- fication (RFID) reader antennas have 3-dB axial ratio bandwidth (ARBW) lower than 80 MHz. In order to cover all the Ultrahigh Frequency (UHF) RFID bands simultaneously, this paper present a novel broadband handheld RFID CP reader antenna. The proposed antenna consists of a square-loop radiating element with 2 feed ports and a broadband feeding network in the same plane, measuring 95 mm × 95 mm × 1.6 mm. The feeding network, which realizes broadband ARBW, is composed of a Wilkinson power divider, a high-pass filter (HPF) and a low-pass filter (LPF), connected to the radiating element, producing broadband right-hand circular polarization (RHCP) in z direction and left-hand circular polarization (LHCP) in −z direction. The measured broad impedance bandwidth (S11 < −10 dB) is from 710 MHz to 1150 MHz. The measured 3-dB ARBW of the proposed antenna is from 800 MHz to 940 MHz. The peak gain in the maximum radiation direction is 1.3 dBic at 910 MHz.
Citation
Qi Liu, Yusha Liu, and Bo Xu, "Broadband Circularly Polarized Loop Antenna Based on High-pass and Low-pass Filters for Handheld RFID Reader Applications," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)500-503
References

1. Bjorninen, T., A. Z. Elsherbeni, and L. Ukkonen, "Low-profile conformal UHF RFID tag antenna for integration with water bottles," IEEE Antennas and Wireless Propagation Letters, Vol. 10, 1147-1150, 2011.
doi:10.1109/lawp.2011.2171911        Google Scholar

2. Tiovonen, M., T. Bjorninen, L. Sydanheimo, L. Ukkonen, and Y. Rahmat-Samii, "Impact of moisture and washing on the performance of embroidered UHF RFID tags," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 1590-1593, 2013.        Google Scholar

3. Du, G. H., T. Tang, and Y. Deng, "Dual-band metal skin UHF RFID tag antenna," Electronics Letters, Vol. 49, No. 14, 2013.
doi:10.1049/el.2013.1597        Google Scholar

4. Choo, J. and J. Ryoo, "UHF RFID tag applicable to various objects," IEEE Transactions on Antennas and Propagation, Vol. 62, No. 2, 922-925, 2014.
doi:10.1109/tap.2013.2290051        Google Scholar

5. Lin, Y.-F., H.-M. Chen, F.-H. Chu, and S.-C. Pan, "Bidirectional radiated circularly polarised square-ring antenna for portable RFID reader," Electronics Letters, Vol. 44, No. 24, 1383-1384, 2008.
doi:10.1049/el:20082579        Google Scholar

6. Lin, Y., C. Lee, S. Pan, and H. Chen, "Proximity-fed circularly polarized slotted patch antenna for RFID handheld reader," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 10, 5283-5286, 2013.
doi:10.1109/tap.2013.2272677        Google Scholar

7. Raviteja, C., C. Varadhan, M. Kanagasabai, A. K. Sarma, and S. Velan, "A fractal-based circular polarized UHF RFID reader antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 499-502, 2014.
doi:10.1109/lawp.2014.2308953        Google Scholar

8. Caso, R., A. Michel, M. Rodriguez-Pino, and P. Nepa, "Dual-band UHF-RFID/WLAN circular polarized antenna for portable RFID readers," IEEE Transactions on Antennas and Propagation, Vol. 62, No. 5, 2822-2826, 2014.
doi:10.1109/tap.2014.2303971        Google Scholar

9. Tang, X. and K. Mouthaan, "Design consideration for octave-band phase shifters using discrete components," IEEE Transactions on Microwave Theory and Techniques, Vol. 58, No. 12, 3459-3466, 2010.        Google Scholar

10. Tang, X. and K. Mouthaan, "Large bandwidth digital phase shifters with all-pass, high-pass, and low-pass networks," IEEE Transactions on Microwave Theory and Techniques, Vol. 61, No. 6, 2325-2331, 2013.
doi:10.1109/tmtt.2013.2260420        Google Scholar
