Wireless Millimeter-wave to Lightwave Signal Converters Using Simple Planar Antennas on LiNbO3 Optical Crystal
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)310-314
Abstract

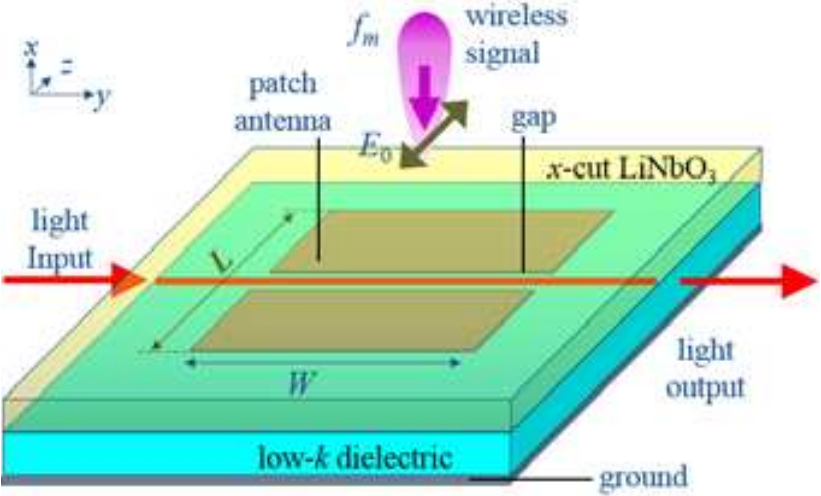

We propose wireless millimeter-wave (MMW) to lightwave (LW) signal converters using a simple planar antenna on LiNbO3 optical crystal. The LiNbO3 crystal is bonded with low-k dielectric material as the substrate. The simple planar antenna is formed with a rectangular patch antenna with a gap and inserted between the bonded structure. An optical waveguide are fabricated on the LiNbO3 crystal and located between the gap. The LiNbO3 crystal has relatively lower dielectric constant compared with a LiTaO3 crystal. Larger antenna size can be obtained using the LiNbO3 crystal. Additionally, an electro-optic coefficient of the LiNbO3 crystal is larger than the LiTaO3 crystal. Therefore, conversion efficiency enhancement can be achieved using the propose device.
Citation
Hiroshi Murata, Yasuyuki Okamura, Atsushi Kanno, Tetsuya Kawanishi, and Yusuf Nur Wijayanto, "Wireless Millimeter-wave to Lightwave Signal Converters Using Simple Planar Antennas on LiNbO3 Optical Crystal," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)310-314
References

1. Pi, Z. and F. Khan, "An introduction to millimeter-wave mobile broadband systems," IEEE Communications Magazine, Vol. 49, No. 6, 101-107, 2011.
doi:10.1109/mcom.2011.5783993        Google Scholar

2. Shi, J.-W., C.-B. Huang, and C.-L. Pan, "Millimeter-wave photonic wireless links for very high data rate communication," NPG Asia Materials, Vol. 3, 41-48, 2011.
doi:10.1038/asiamat.2010.193        Google Scholar

3. Chen, A. and E. Murphy, Broadband Optical Modulators: Science, Technology, and Applications, CRC Press, Taylor and Francis Group, North West, 2012.        Google Scholar

4. Wijayanto, Y. N., H. Murata, and Y. Okamura, "Wireless microwave-optical signal conversion in quasi-phase-matching electro-optic modulators using gap-embedded patch-antennas," IEICE Transaction on Electronics, Vol. E96-C, No. 2, 212-219, 2013.
doi:10.1587/transele.e96.c.212        Google Scholar

5. Wijayanto, Y. N., H. Murata, and Y. Okamura, "Electro-optic millimeter-wave-lightwave signal converters suspended to gap-embedded patch antennas on low-k dielectric materials," IEEE Journal of Selected Topics in Quantum Electronics, Vol. 19, No. 6, 2013.        Google Scholar

6. Gupta, V. R. and N. Gupta, "Characteristics of a compact microstrip antenna," Microwave and Optical Technology Letters, Vol. 40, No. 2, 158-160, 2004.
doi:10.5755/j02.eie.10924        Google Scholar

7. Lee, K. F. and K. M. Luk, Microstrip Patch Antennas, Imperial College Press, London, 2011.        Google Scholar

8. Gupta, K. C., R. Garg, and I. Bahl, Microstrip Lines and Slotlines, Arech House, Inc., Norwood, 2001.        Google Scholar

9. Zhang, X., B. Lee, C. Lin, A. X. Wang, A. Hosseini, and R. T. Chen, "Highly linear, broadband optical modulator based on electro-optic polymer," IEEE Photonics Journal, Vol. 4, No. 6, 2214-2228, 2012.        Google Scholar
