Investigation of a Miniature and High Gain On-chip V Band Microstrip Antenna
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)383-385
Abstract

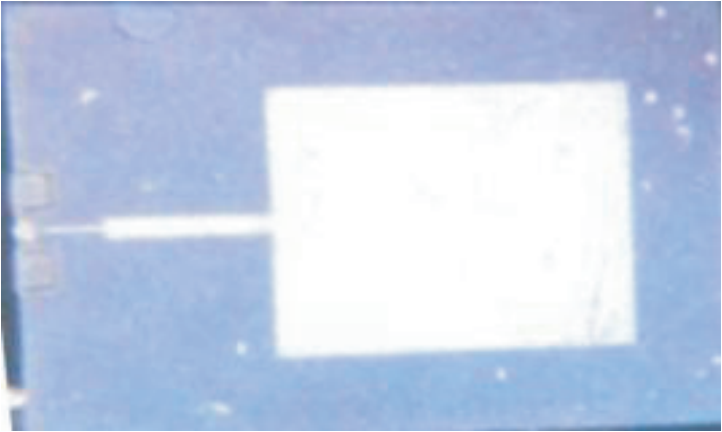

This paper presents a miniature and high gain on-chip V band microstrip antenna. A ground plane on the bottom metal layer M1 has been approached to shield the wave from penetrating into the low-resistivity and high dielectric constant Si substrates to improve the an- tenna performance. Antenna parameters have been investigated to obtain an optimized antenna with 0.87 mm ∗ 1.16 mm occupation. The measured and simulated return loss results and simu- lated radiation pattern results of proposed antenna have been presented. The performance of the proposed antenna as compared to other published on-chip antennas has also been demonstrated.
Citation
Albert Chin, Chenghsin Chuang, Kai Kang, Joshua Le-Wei Li, Jia-Qi Liu, Yu-Bo Wang, and Li-Yan Xie, "Investigation of a Miniature and High Gain On-chip V Band Microstrip Antenna," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)383-385
References

1. Liu, J.-Q., J.-Y. Jin, and J. L.-W. Li, "A miniature bandpass filter with split ring resonator and asymmetrical coupled lines," 2013 International Conference on Communications, Circuits and Systems (ICCCAS), Vol. 2, 425-427, 2013.        Google Scholar

2. Babakhani, A., X. Guan, A. Komijani, A. Natarajan, and A. Hajimiri, "A 77-GHz phased-array transceiver with on-chip antennas in silicon: Receiver and antennas," IEEE Journal of Solid-State Circuits, Vol. 41, No. 12, 2795-2806, 2006.        Google Scholar

3. Shamim, A., L. Roy, N. Fong, and N G. Tarr, "24 GHz on-chip antennas and balun on bulk Si for air transmission," IEEE Transactions on Antennas and Propagation, Vol. 56, No. 2, 303-311, 2008.        Google Scholar

4. Zhang, Y. P., M. Sun, and L. H. Guo, "On-chip antennas for 60-GHz radios in silicon technology," IEEE Transactions on Electron Devices, Vol. 52, No. 7, 1664-1668, 2005.        Google Scholar

5. Chuang, H.-R., L.-K. Yeh, P.-C. Kuo, K.-H. Tsai, and H.-L. Yue, "A 60-GHz millimeter-wave CMOS integrated on-chip antenna and bandpass filter," IEEE Transactions on Electron Devices, Vol. 58, No. 7, 1837-1845, 2011.        Google Scholar

6. Pan, S. and F. Capolino, "Design of a CMOS on-chip slot antenna with extremely flat cavity at 140 GHz," IEEE Antennas and Wireless Propagation Letters, Vol. 10, 827-830, 2011.        Google Scholar
