PhotonIcs and Electromagnetics Research Symposium,
also known as Progress In Electromagnetics Research Symposium
PIERS Proceedings
Published: 2015-08-28
The Proposal of Pulse Synchronous Laser Signal Source Based on Coupled-microdisk Photonic Molecules
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)337-340
Abstract

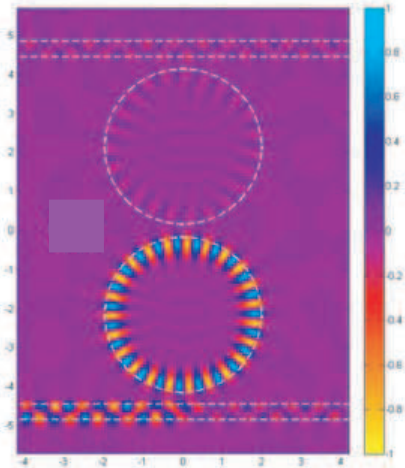

Here we propose a model to generate pulse synchronous laser signals based on waveguide coupled microdisk photonic molecules. Through the beating between the symmetric and anti-symmetric modes in the photonic molecules, dual pulse synchronous laser signals are coupled out from two waveguides. We simulate the light field distributions of the modes in the photonic molecules via finite difference time domain (FDTD) method, and compute the frequency differences between the symmetric mode and anti-symmetric transverse magnetic (TM) coupled modes. The frequency differences, which represent the pulse repetition frequency (PRF) of pulse synchronous laser signals, can reach from dozens of GHz to about 1 THz according to the simulation. The numerical results show that the proposed model can generate dual pulse synchronous laser signals with fixed pulse widths and complementary phase which can act as a pulse synchronous laser signal source.
Citation
Yue-De Yang, Yong-Zhen Huang, Bo-Wen Liu, and Xiu-Wen Ma, "The Proposal of Pulse Synchronous Laser Signal Source Based on Coupled-microdisk Photonic Molecules," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)337-340
References

1. Bayer, M., et al. "Optical modes in photonic molecules," Physical Review Letters, Vol. 81, No. 3, 2582-2585, 1998.
doi:10.1103/physrevlett.81.2582        Google Scholar

2. Liu, J., et al. "Design of a multiplex pulse synchronizer based on FPGA," Electronic Engineer., Vol. 34, No. 7, 3-5, 2008.        Google Scholar

3. Ryu, J.-W., et al. "Terahertz beat frequency generation from two-mode lasing operation of coupled microdisk laser," Optics Letters, Vol. 37, No. 15, 3210-3212, 2012.
doi:10.1364/ol.37.003210        Google Scholar

4. Ishii, S., et al. "Modal characteristics and bistability in twin microdisk photonic molecule lasers," IEEE Journal of Selected Topics in Quantum Electronics, Vol. 12, No. 1, 71-77, 2006.
doi:10.1109/jstqe.2005.862951        Google Scholar

5. Benyoucef, M., et al. "Quality-factor enhancement of supermodes in coupled microdisks," Optics Letters, Vol. 36, No. 8, 1317-1319, 2011.
doi:10.1364/ol.36.001317        Google Scholar
