Implementation of Three-dimensional Diffractive Gaussian Beam Analysis Method
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)432-435
Abstract

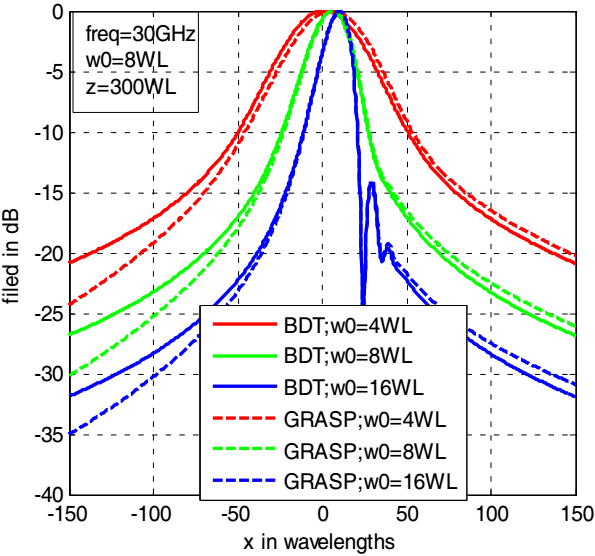

This paper developed a 3-dimensional Diffractive Gaussian Beam Analysis (DGBA) method for the analysis of electrically large reflector antennas. Unlike a symmetrical 2-D struc- ture, it adopts the approach of full plane expansion, where the illuminating field over the whole input plane is decomposed into a set of elementary Gaussian beams. These Gaussian beams are propagated to the reflector. Reflected beams are treated with Geometric Optics, while edge diffraction is modeled using the canonical problem of a 3D Gaussian beam incident upon an opaque Kirchhoff half-screen. The output beam is a superposition of all reflected and diffracted elementary beams. The proposed analysis method is verified against a GRASP Physical Optics.
Citation
Xiaodong Chen, Fangyuan Cheng, Xiaoming Liu, Zejian Lu, Hai Wang, and Junsheng Yu, "Implementation of Three-dimensional Diffractive Gaussian Beam Analysis Method," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)432-435
References

1. Martin, R. J. and D. H. Martin, "Quasi-optical antennas for radiometric remote-sensing," Electronics & Communication Engineering Journal, Vol. 8, No. 1, 37-48, 1996.
doi:10.1049/ecej:19960106        Google Scholar

2. Jorgesen, R., G. Padovan, P. de Maagt, D. Lamarre, and L. Costes, "A 5-frequency millimeter wave antenna for a spaceborne limb sounding instrument," IEEE Transactions on Antennas and Propagation, Vol. 49, No. 5, 703-714, May 2001.        Google Scholar

3. Yu, J., S. Liu, and Q. Wei, "A 3D design software for quasi-optical systems based on integrated methods," Microwave Technology and Computation Electromagnetics, ICMTCE (2009), 2009.
doi:10.1049/cp.2009.1346        Google Scholar

4. Takenaka, T. and O. Fukumitsu, "Asymptotic representation of the boundary-diffraction wave for a three-dimensional Gaussian beam incident upon a Kirchhoff half-screen," J. Opt. Soc. Am., Vol. 72, No. 3, 331-336, 1982.        Google Scholar

5. O'sullivan, C., et al. "Far-infrared optics design & verification," International Jounal of Infrared and Millimeter Waves, Vol. 23, No. 7, 2002.        Google Scholar

6. GRASP8, "Reflector analysis code user manual," TICRA, Copenhagen, Denmark.        Google Scholar
