Dual-band Bandpass Filter Based on GaN MMIC
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)390-393
Abstract

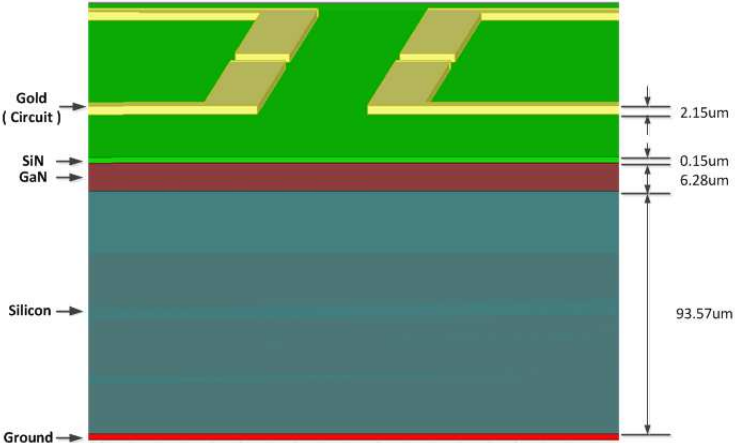

Dual-band bandpass filter using stub-loaded resonators (SLR) based on GaN MMIC is presented in this paper. The proposed circuit consists of two symmetric stub-loaded resonators, which are folded and coupled to each other. The two passband frequencies can be eas- ily controlled by tuning the length of the half-wavelength resonators and the open stubs shunted at the midpoint of the microstrip lines. Moreover, the ports are directly tapped at the resonators. And additional open stubs are added to the 50-ohm feed lines for better performance. Benefit- ting from the integrated circuit technology, the filter can be designed on GaN MMIC that only occupies a small size. For demonstration, a filter, centered at 40 GHz and 60 GHz, is designed and the simulated result shows good performance.
Citation
Xiu-Yin Zhang, Hsuan-Ling Kao, and Zhi Xia Du, "Dual-band Bandpass Filter Based on GaN MMIC," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)390-393
References

1. Miyake, H., S. Kitazawa, T. Ishizaki, T. Yamada, and Y. Nagatomi, "A miniaturized monolithic dual band filter using ceramic lamination technique for dual mode portable telephones," IEEE MTT-S Int. Microw. Symp. Dig., Vol. 2, 789-792, 1997.
doi:10.1109/mwsym.1997.602908        Google Scholar

2. Kuo, J.-T., T.-H. Yeh, and C.-C. Yeh, "Design of microstrip bandpass filters with a dual-passband response," IEEE Trans. Microw. Theory Tech., Vol. 53, 1331-1337, 2005.
doi:10.1109/tmtt.2005.845765        Google Scholar

3. Sun, S. and L. Zhu, "Compact dual-band microstrip bandpass filter without external feeds," IEEE Microw. Wireless Compon. Lett., Vol. 15, No. 10, 644-646, 2005.
doi:10.1109/lmwc.2005.856687        Google Scholar

4. Chang, S.-F., Y.-H. Jeng, and J.-L. Chen, "Dual-band step-impedance bandpass filter for multimode wireless LANs," Electron. Lett., Vol. 40, No. 1, 38-39, 2004.
doi:10.1049/el:20040065        Google Scholar

5. Wang, J., Y.-X. Guo, B.-Z. Wang, L. C. Ong, and S. Xiao, "High-selectivity dual-band stepped-impedance bandpass filter," Electron. Lett., Vol. 42, No. 7, 538-539, 2006.
doi:10.1049/el:20064491        Google Scholar

6. Tsai, L.-C. and C.-W. Huse, "Dual-band bandpass filters using equal-length coupled-serial-shunted lines and Z-transform techniques," IEEE Trans. Microw. Theory Tech., Vol. 52, No. 4, 1111-1117, 2004.
doi:10.1109/tmtt.2004.825680        Google Scholar

7. Tsai, L. C. and C. W. Hsue, "Dual-band bandpass filters using equal length coupled-serial-shunted lines and transform technique," IEEE Trans. Microw. Theory Techn., Vol. 52, No. 4, 1111-1117, 2004.        Google Scholar

8. Chen, C.-Y. and C.-Y. Hsu, "A simple and effective method for microstrip dual-band filters design," IEEE Microw. Wireless Compon. Lett., Vol. 16, No. 3, 246-248, May 2006.
doi:10.1109/lmwc.2006.873584        Google Scholar

9. Chen, J.-X., T. Y. Yum, J.-L. Li, and Q. Xue, "Dual-mode dual-band bandpass filter using stacked-loop structure," IEEE Microw. Wireless Compon. Lett., Vol. 16, No. 9, 502-504, 2006.
doi:10.1109/lmwc.2006.880705        Google Scholar

10. Zhang, H. and K. J. Chen, "A stub tapped branch-line coupler for dual-band operations," IEEE Microw. Wireless Compon. Lett., Vol. 17, No. 2, 106-108, 2007.
doi:10.1109/lmwc.2006.890330        Google Scholar

11. Zhang, X. Y. and Q. Xue, "Dual-band bandpass filters using stub-loaded resonators," IEEE Microw. Wireless Compon. Lett., Vol. 17, No. 8, 583-585, 2007.
doi:10.1109/lmwc.2007.901768        Google Scholar

12. Chang, J.-F., Y.-S. Lin, P.-L. Huang, and S.-S. Lu, "A micromachined V-band CMOS bandpass filter with 2-dB insertion-loss," Electronic Components and Technology Conference, 2009.
doi:10.1109/ectc.2009.5074226        Google Scholar

13. Lin, W.-C., T.-M. Shen, C.-F. Chen, T.-Y. Huang, and R.-B. Wu, "A miniaturized V-band bandpass filter using integrated passive devices technology," Proceedings of Asia-Pacific Microwave Conference, 2010.        Google Scholar

14. Yang, B., E. Skafidas, and R. J. Evans, "60 GHz compact integrated cross-coupled SIR-MH bandpass filter on bulk CMOS," Electron. Lett., Vol. 44, No. 12, 2008.
doi:10.1049/el:20080599        Google Scholar

15. Hsu, C.-Y., C.-Y. Chen, and H.-R. Chuang, "A 77-GHz CMOS on-chip bandpass filter with balanced and unbalanced outputs," IEEE Electron Device Letters, Vol. 31, No. 11, 2010.
doi:10.1109/led.2010.2068536        Google Scholar
