A Dual-band Circularly Polarized Antenna with Novel Feeding Method for BDS, GPS and GLONASS Application
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)496-499
Abstract

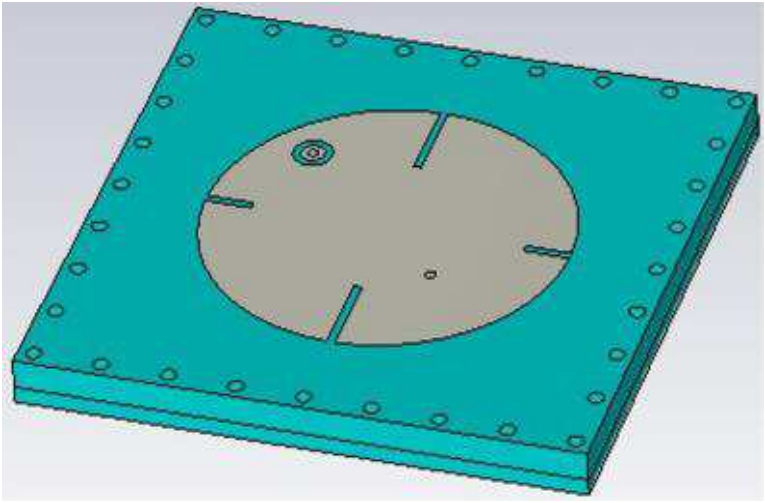

In this paper, a dual-band circularly polarized antenna is proposed. This antenna constructs with two layers, which provides two working frequency bands. One of the bands operates at the BDS B3 (1268.52 ± 10 MHz). The other band concludes the GPS L1 (1575.42 ± 10 MHz) and GLONASS L1 (1602 ± 8 MHz). By changing the length and width of four slots on each patch, its circular polarization performance and working bandwidth can be adjusted. The multistacked patches fed through two coaxial probes which provide two different input signal. To the probe feed on the lower patchit do not connect direct to the lower patch but solder to a small disc on the upper patch. By adjusting these parameters, we will obtain better impedance matching performance.
Citation
Fei Cheng, Yuan Jiang, Zan Yu Kang, Xian Qi Lin, Li Ying Nie, Jia Wei Yu, and Jin Zhang, "A Dual-band Circularly Polarized Antenna with Novel Feeding Method for BDS, GPS and GLONASS Application," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)496-499
References

1. Falade, O. P., "Single feed stacked patch circular polarized antenna for triple band GPS recievers," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 10, 4479-4484, 2012.
doi:10.1109/tap.2012.2207354        Google Scholar

2. Agarwal, K., "RIS-based compact circularly polarized microstrip antennas," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 2, 547-554, 2013.        Google Scholar

3. Nasimuddin, Z., N. Chen, and X. Qing, "Dual-band circularly polarized S-shaped slotted patch antenna with a small frequency-ratio," IEEE Transactions on Antennas and Propagation, Vol. 58, No. 6, 2112-2115, 2010.        Google Scholar

4. Hsieh, W. T., T. H. Chang, and J. F. Kiang, "Dual-band circularly polarized cavity-backed annular slot antenna for GPS receiver," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 4, 2076-2080, April 2012.
doi:10.1109/tap.2012.2186229        Google Scholar

5. Bod, M. and H. R. Hassani, "Multi-band circularly polarized slot antenna for GPS, bluetooth and wimax bands," Progress In Electromagnetics Research C, Vol. 49, 171-178, 2014.
doi:10.2528/pierc14031303        Google Scholar

6. Gao, S., Q. Luo, and F. Zhu, Circularly Polarized Antennas, Wiley-Interscience, University of Kent, UK, 2014.        Google Scholar

7. Tian, X. Q., S. B. Liu, Y. S. Wei, and X. Y. Zhang, "Circularly polarized microstrip antenna with slots for beidou (COMPASS) navigation system," International Symposium on Signals Systems and Electronics (ISSSE), Vol. 2, 17-20, September 17-20, 2010.
doi:10.1109/issse.2010.5606969        Google Scholar
