Bandwidth Limitations and Trade-off Relations for Wide- and Multi-band Array Antennas over a Ground Plane
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)419-423
Abstract

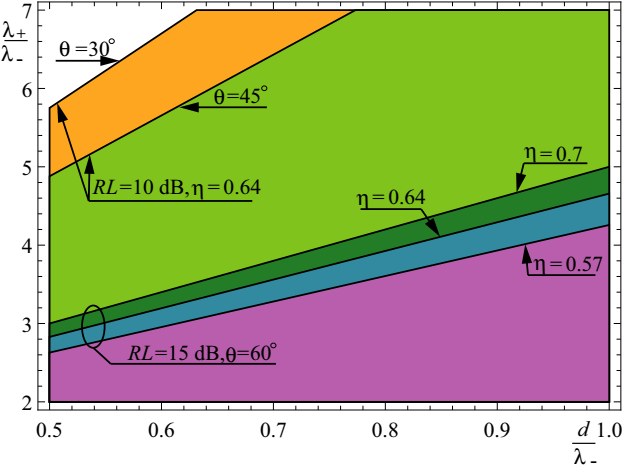

There has been a recent drive to find fundamental limitations of bandwidth per- formance. Such results include Rozanovs (2000) bandwidth performance of absorbers, and Gustafssons (2007) limitation for single port antennas, similar bounds on transmission coeffi- cients through a frequency selective screen and high-impedance surfaces are also known. In the present work we show a related bound for array antennas over a ground plane. We illustrate how this bound can be formulated as an array figure of merit, weighting impedance bandwidth, return loss, scan range and material and size information against each other. The derivation of the array figure of merit is based on Bode-Fano theory for a scattering passive object, and is related to the Rozanov bound of absorbers. This result is essentially a sum-rule result that only requires that the array element is scattering passive, time-invariant and linear. The bound is derived for linearly polarized periodic arrays over an infinite planar ground-plane. The array figure of merit can both be used to evaluate existing antennas. It can also be used as a prediction tool and hence as an a-priori assessment of impedance bandwidth limitations for a given antenna element. The array figure of merit contains return-loss, impedance bandwidth, scan range, and element specific information. We show how to use the array figure of merit to investigate trade-off between, e.g., return-loss and bandwidth or bandwidth versus thickness. We note that the array figure of merit easily extend to multi-band antennas.
Citation
B. Lars G. Jonsson, "Bandwidth Limitations and Trade-off Relations for Wide- and Multi-band Array Antennas over a Ground Plane," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)419-423
References

1. Tomasic, B. and H. Steyskal, "Minimum Q of the element in an infinite phased array --- TMz case," 19th International Conference on Applied Electromagnetics and Communications 2007, ICECom 2007, 1-8, 2007.
doi:10.1109/icecom.2007.4544462        Google Scholar

2. Kwon, D. and D. Pozar, "Energy storage and radiation Q of infinite planar dipole phased arrays," IEEE Trans. Antennas Propagat., Vol. 62, No. 1, 2014.
doi:10.1109/tap.2013.2287515        Google Scholar

3. Doane, J. P., K. Sertel, and J. L. Volakis, "Bandwidth limits for arrays backed by a conducting ground plane," IEEE Trans. Antennas Propagat., 2511-2518, 2013.
doi:10.1109/tap.2013.2243099        Google Scholar

4. Jonsson, B. L. G., C. I. Kolitsidas, and N. Hussain, "Array antenna limitations," IEEE Antenn. Wireless Propag. Lett., Vol. 12, 1539-1542, 2013.
doi:10.1109/lawp.2013.2291362        Google Scholar

5. Doane, J., K. Sertel, and J. L. Volakis, "Bandwidth limits for lossless, reciprocal PEC-backed arrays of arbitrary polarization," IEEE Trans. Antennas Propagat., Vol. 62, No. 5, 2531-2542, 2014.        Google Scholar

6. Chu, L. J., "Physical limitations of omni-directional antennas," J. Appl. Phys., Vol. 19, 1163-1175, 1948.
doi:10.1063/1.1715038        Google Scholar

7. Collin, R. E. and S. Rothschild, "Evaluation of antenna Q," IEEE Trans. Antennas Propagat., Vol. 12, 23-27, 1964.
doi:10.1109/tap.1964.1138151        Google Scholar

8. Yaghjian, A. D. and S. R. Best, "Impedance, bandwidth, and Q of antennas," IEEE Trans. Antennas Propagat., Vol. 53, No. 4, 1298-1324, 2005.
doi:10.1109/tap.2005.844443        Google Scholar

9. Gustafsson, M., C. Sohl, and G. Kristensson, "Physical limitations on antennas of arbitrary shape," Proc. R. Soc. A, Vol. 463, 2589-2607, 2007.
doi:10.1098/rspa.2007.1893        Google Scholar

10. Vandenbosch, G. A. E., "Reactive energies, impedance, and Q factor of radiating structures," IEEE Trans. Antennas Propagat., Vol. 58, No. 4, 1112-1127, 2010.
doi:10.1109/tap.2010.2041166        Google Scholar

11. Vandenbosch, G. A. E., "Simple procedure to derive lower bounds for radiation Q of electrically small devices of arbitrary topology," IEEE Trans. Antennas Propagat., Vol. 59, No. 6, 2217-2225, 2011.
doi:10.1109/tap.2011.2143657        Google Scholar

12. Gustafsson, M., M. Cismasu, and B. L. G. Jonsson, "Physical bounds and optimal currents on antennas," IEEE Trans. Antennas Propagat., Vol. 60, No. 6, 2672-2681, 2012.
doi:10.1109/tap.2012.2194658        Google Scholar

13. Capek, M., P. Hazdra, and J. Eichler, "A method for the evaluation of radiation Q based on modal approach," IEEE Trans. Antennas Propagat., Vol. 60, No. 10, 2012.
doi:10.1109/tap.2012.2207329        Google Scholar

14. Gustafsson, M. and S. Nordebo, "Optimal antenna for Q, superdirectivity, and radiation patterns using convex optimization," IEEE Trans. Antennas Propagat., Vol. 61, No. 3, 1109-1118, 2013.
doi:10.1109/iceaa.2014.6903965        Google Scholar

15. Mikki, S. M. and Y. M. Antar, "A theory of antenna electromagnetic near field --- Part I & II," IEEE Trans. Antennas Propagat., Vol. 60, No. 12, 4691-4724, 2011.
doi:10.1109/tap.2011.2165499        Google Scholar

16. Gustafsson, M. and B. L. G. Jonsson, "Stored electromagnetic energy and antenna Q," ArXiv Physics e-prints, arXiv:1211.5521, 2013.
doi:10.2528/pier14111502        Google Scholar

17. Geyi, W., "On stored energies and radiation Q," ArXiv Physics e-prints, arXiv:1403.3129, 2014.
doi:10.1109/tap.2014.2384028        Google Scholar

18. Yaghjian, A. D., M. Gustafsson, and B. L. G. Jonsson, "Minimum Q for lossy and lossless electrically small dipole antennas," Progress In Electromagnetic Research, Vol. 143, 641-673, 2013.
doi:10.2528/pier13103107        Google Scholar

19. Youla, D., L. Castriota, and H. Carlin, "Bounded real scattering matrices and the foundations of linear passive network theory," IRE Transactions on Circuit Theory, Vol. 6, No. 1, 102-124, 1959.
doi:10.1109/tct.1959.1086518        Google Scholar

20. Zemanian, A. H., "An N-port realizability theory based on the theory of distributions," IEEE Transactions on Circuit Theory, Vol. 10, No. 2, 265-274, 1963.
doi:10.1109/tct.1963.1082119        Google Scholar

21. Nussenzveig, H. M., Causality and Dispersion Relations, Academic Press, London, 1972.        Google Scholar

22. Bernland, A., A. Luger, and M. Gustafsson, "Sum rules and constraints on passive systems," J. Phys. A: Math. Theor., Vol. 44, No. 14, 145205, 2011.
doi:10.1088/1751-8113/44/14/145205        Google Scholar

23. Rozanov, K. N., "Ultimate thickness to bandwidth ratio of radar absorbers," IEEE Trans. Antennas Propagat., Vol. 48, No. 8, 1230-1234, 2000.
doi:10.1109/8.884491        Google Scholar

24. Sjöberg, D., "Low frequency scattering by passive periodic structures for oblique incidence: Low pass case," J. Phys. A: Math. Theor., Vol. 42, 385402, 2009.        Google Scholar

25. Gustafsson, M. and D. Sjöberg, "Physical bounds and sum rules for high-impedance surfaces," IEEE Trans. Antennas Propagat., Vol. 59, No. 6, 2196-2204, 2011.
doi:10.1109/tap.2011.2143688        Google Scholar

26. Wohlers, M. and E. Beltrami, "Distribution theory as the basis of generalized passive-network analysis," IEEE Transactions on Circuit Theory, Vol. 12, No. 2, 164-170, 1965.
doi:10.1109/tct.1965.1082428        Google Scholar
