PhotonIcs and Electromagnetics Research Symposium,
also known as Progress In Electromagnetics Research Symposium
PIERS Proceedings
Published: 2015-08-28
A Unified Field Analysis Method for IR/MMW Beam Splitter
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)514-519
Abstract

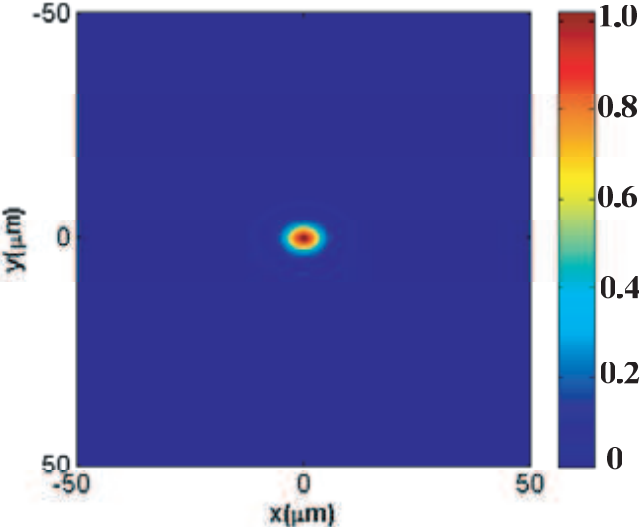

Aperture field integration method (AFIM) is proposed and utilized to efficiently compute the field distributions of infrared (IR)/millimeter wave (MMW) beam splitter including the MMW near field distribution and IR far field distribution. A single dielectric layer beam splitter is analyzed by AFIM. Compared to the multilevel fast multipole method (MLFMM), the memory requirement and CPU time consumption are reduced drastically from 4.6 GB and 2141 seconds to 1.2 MB and 58 seconds, respectively, when the MMW near field distribution is computed. In order to meet the far field condition a scale factor is proposed to transform the focal plane into a far field plane, when the IR far field in a focal plane is computed. The IR far field calculation accuracy is better than 97% compared to the analytical solutions. The simulation results show that the AFIM as a unified method can be applied to both beam splitters’ MMW near field and IR far field engineering estimation.
Citation
Yi Tian, Xin Wang, Zhuo Li, Hui Yan, and Li Zhang, "A Unified Field Analysis Method for IR/MMW Beam Splitter," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)514-519
References

1. Liu, Y., J. Tan, and J. Ma, "Use of conducting inductive meshes with periodic rectangle units as an infrared/microwave dual-mode detecting beamsplitter," J. Opt., Vol. 13, 035407, 6pp, 2011.
doi:10.1088/2040-8978/13/3/035407        Google Scholar

2. Mobley, S., J. Cole, J. Cooper, and J. Jarem, "U.S. Army Missile Command dual-mode millimeter wave/infrared simulator development," Proc. SPIE, Vol. 2741, 316-331, 1996.
doi:10.1117/12.241109        Google Scholar

3. Mobley, S. B. and J. Gareri, "Hardware-in-the-loop simulation (HWIL) facility for development, test, and evaluation of multi-spectral missile systems — Update," Proc. SPIE, Vol. 4027, 11-21, 2000.        Google Scholar

4. Mobley, S. and J. Cole, "Dichroic beam combiner to support hardware-in-the-loop testing of dual-mode common aperture seekers," Proc. SPIE, Vol. 3368, 32-41, 1998.
doi:10.1117/12.316394        Google Scholar

5. Tian, Y., L. J. Lv, L. W. Jiang, X. Wang, Y. H. Li, H. M. Yu, X. C. Feng, Q. Li, L. Zhang, and Z. Li, "Infrared/microwave (IR/MW) micromirror array beam combiner design and analysis," Appl. Opt., Vol. 52, 5411-5419, 2013.
doi:10.1364/ao.52.005411        Google Scholar

6. Tian, Y., R. Xu, Rui. Shi, X. Wang, Q. Li, L. Zhang, and Z. Li, "IR/MW multilayered dielectric plate beam combiner design, optimization and evaluation," Appl. Optics, Vol. 52, 288-297, 2013.
doi:10.1364/ao.52.000288        Google Scholar

7. Mobley, S., J. Cole, J. Cooper, and J. Jarem, "U.S. Army Missile Command dual-mode millimeter wave/infrared simulator development," Proc. SPIE, Vol. 2741, 316-331, 1996.
doi:10.1117/12.241109        Google Scholar

8. McKay, J. P. and R. S. Yahya, "Compact range reflector analysis using the plane wave spectrum approach with an adjustable sampling rate," IEEE Trans. Antenna. Propag., Vol. 39, 746-753, 1991.
doi:10.1109/8.86871        Google Scholar

9. Quan, S., "Time domain analysis of the near-field radiation of shaped electrically large apertures," IEEE Trans. Antenna. Propag., Vol. 58, 300-306, 2010.
doi:10.1109/tap.2009.2037705        Google Scholar

10. Tan, J., Z. Lu, J. Liu, P. Jin, and Y. Wang, "Analysis of fraunhofer diffractive characteristics of a tilted metallic mesh for its effect on optical measurement," Measurement Science and Technology, Vol. 18, No. 6, 1703-1709, 2007.
doi:10.1088/0957-0233/18/6/s06        Google Scholar

11. Su, T., D. Ding, Z. Fan, and R. Chen, "Efficient analysis of EM scattering from bodies of revolution via the ACA," IEEE Trans. Antenna. Propag., Vol. 62, No. 2, 983-985, 2014.
doi:10.1109/tap.2013.2292079        Google Scholar
