High Frequency Performance Comparison among Three Kinds of Board to Wire Connectors

Yaw-Dong Wu,

Yaw-Dong Wu

National Kaohsiung University of Applied Sciences, Taiwan, R.O.C.

Homepage

Li-Wei Chen,

Li-Wei Chen

National Kaohsiung University of Applied Sciences, Taiwan

Homepage

Jau-Ji Jou,

Jau-Ji Jou

National Kaohsiung University of Applied Sciences, Taiwan

Homepage

Tien-Tsorng Shih,

Tien-Tsorng Shih

National Kaohsiung University of Applied Sciences, Taiwan, R.O.C.

Homepage

Ruei-Nian Wang

National Kaohsiung University of Applied Sciences, Taiwan

Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)153-156

Abstract

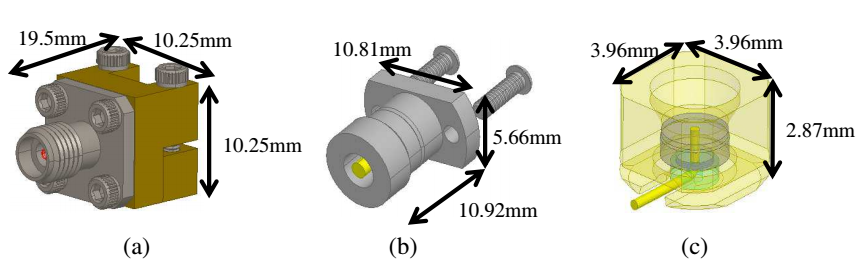

In this paper, we analyze and compare the properties of three kinds of high fre- quency board to wire connectors which are horizontal K-type connector vertical K-type connector, and subminiature modular plug-in mini (SMPM) connector. The S-parameters of these connec- tors were simulated through the High Frequency Structure Simulator (HFSS) software. Using these connectors, three kinds of evaluation boards (EVB) were designed for measuring the high frequency performance of the connectors. The S-parameters of these EVBs were measured and verified through the network analyzer, and the impedances were also measured through the time domain reflector (TDR) The bandwidth of the SMPM connector is about 19 GHz, the bandwidth of the vertical K-type connector is about 23 GHz, and the bandwidth of the horizontal K-type connector is above 25 GHz. The board to wire horizontal K-type connector is more suitable than the other two connectors for 25 Gb/s transmission applications.

Citation

Yaw-Dong Wu, Li-Wei Chen, Jau-Ji Jou, Tien-Tsorng Shih, and Ruei-Nian Wang, "High Frequency Performance Comparison among Three Kinds of Board to Wire Connectors," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)153-156

References

1. Duelk, Marcus and RamÓn Gutierrez-Castrejon, "4 x 25-Gb/s 40-km PHY at 1310 nm for 100 GbE using SOA-based preamplifier," Journal of Lightwave Technology, Vol. 26, No. 12, 1681–1689, June 2008.
doi:10.1109/jlt.2008.920124 Google Scholar

2. Sinsky, Jeffrey and Peter Winzer, "100-Gb/s optical communications," IEEE Microwave Magazine, Vol. 10, No. 2, 44–57, April 2009.
doi:10.1109/mmm.2008.931669 Google Scholar

3. D’Ambrosia, John, "100 gigabit ethernet and beyond commentary," IEEE Communications Magazine, Vol. 48, No. 3, S6–S13, March 2010.
doi:10.1109/mcom.2010.5434372 Google Scholar
