paper 150228101211

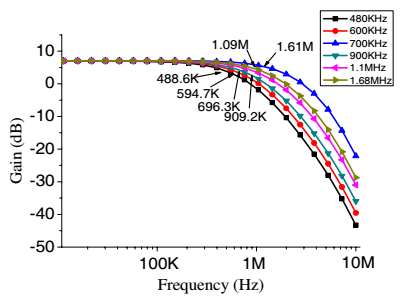

A fully-integrated single-chip receiver for an 860–960 MHz UHF RFID reader is designed in 0.18 µm CMOS technology. It is mainly composed of an RF front-end, a DC offset cancellation (DCOC) block, and an analogue baseband. The RF front-end consists of a double- mode low noise amplifier (LNA) and an I/Q mixer. The LNA can operate under two different modes, which correspond to the listen-before-talk (LBT) mode and the normal mode specified by UHF RFID protocols, respectively. The common-gate structure and the dynamic current injection technique are used for the mixer to achieve high linearity and low 1/f noise. The analogue baseband comprises a programmable gain amplifier (PGA) and a low-pass filter (LPF). The opamp-based PGA is composed of a fine gain stage with a gain step of 1 dB, and a coarse gain stage with three fixed gain, corresponding to 6 dB, 12 dB and 24 dB, respectively. The LPF is a fourth-order Butterworth active RC one, whose bandwidth can be adjusted between 480 kHz and 1.68 MHz. Simulation results show that the receiver achieves P1 dB of −2.1 dB in LBT mode and sensitivity of −88 dBm in normal mode, with power dissipation of 95.72 mW from a 1.8 V power supply.

Citation

Debo Wang, Yufeng Guo, Ying-Qi Qian, Changchun Zhang, Yi Zhang, and Jiang Zhao, "A UHF RFID Reader Receiver SoC in 0.18 µm CMOS Technology," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)130-134

References

1. Wang, W., S. Lou, K. Chui, S. Rong, C.F. Lok, H. Zheng, H.T. Chan, S.W. Man, H.C. Luong, V.K. Lau, and C.Y. Tsui, "Single-Chip UHF RFID reader in 0.18- μm CMOS," 111–114, September 2007.
doi:10.1109/cicc.2007.4405693 Google Scholar

2..

3..

4. Koo, Kyoungchoul, Hyunjeong Park, Yujeong Shim, and Joungho Kim, "Noise Figure Degradation Analysis of Power/Ground Noise on 900MHz LNA for UHF RFID," 416–420, December 2007.
doi:10.1109/eptc.2007.4469738 Google Scholar

5. Kwon, Ickjin, Yunseong Eo, Heemun Bang, Kyudon Choi, Sangyoon Jeon, Sungjae Jung, Donghyun Lee, and Heungbae Lee, "A Single-Chip CMOS Transceiver for UHF Mobile RFID Reader," IEEE Journal of Solid-State Circuits, Vol. 43, No. 3, 729–738, March 2008.
doi:10.1109/jssc.2007.914302 Google Scholar
