PhotonIcs and Electromagnetics Research Symposium,
also known as Progress In Electromagnetics Research Symposium
PIERS Proceedings
Published: 2015-08-28
Tunable V-cavity Semiconductor Laser and Modules
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)333-336
Abstract

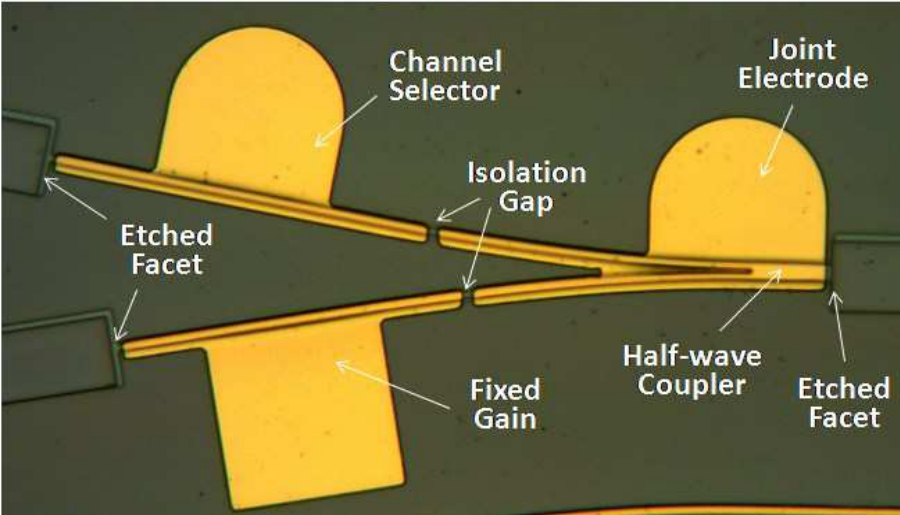

We present the principle, design, packaging and measurement results of widely tunable V-cavity lasers. By using a novel half-wave coupler, single-mode lasing with high side- mode-suppression-ratio is achieved. Single-electrode controlled wide-band wavelength tuning with Vernier effect is realized. The full-band tuning of 50 channels with 100 GHz spacing is demonstrated by further employing temperature induced gain spectrum shift. The laser is pack- aged into a small-form-factor 9-pin TOSA, and the electronic driver has been developed for the wavelength tuning and direct modulation. The advantages of compactness, fabrication simplic- ity, and easy wavelength control offer great potential for the tunable laser to be used in low-cost access and data center networks, as well as in portable devices for spectroscopic analysis.
Citation
Jian-Jun He, Guoping Li, Xiaolu Liao, Jianjun Meng, Lei Wang, Lin Wu, Xiaohai Xiong, Sen Zhang, Hongli Zhu, and Li Zou, "Tunable V-cavity Semiconductor Laser and Modules," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)333-336
References

1. Coldren, L. A., "Monolithic tunable diode lasers," IEEE J. Sel. Topics Quantum Electron., Vol. 6, 988, 2000.
doi:10.1109/2944.902147        Google Scholar

2. Tohmori, Y., Y. Yoshikuni, and H. Ishii, "Broad-range wavelength-tunable superstructure grating (SSG) DBR lasers," IEEE J. Quantum Electron., Vol. 29, 1817-1823, 1993.
doi:10.1109/3.234439        Google Scholar

3. Ward, A. J., et al. "Widely tunable DS-DBR laser with monolithically integrated SOA: Design and performance," IEEE J. Sel. Topics Quantum Electron., Vol. 11, 149-156, 2005.
doi:10.1109/jstqe.2004.841698        Google Scholar

4. Wesström, J.-O., G. Sarlet, S. Hammerfeldt, L. Lundqvist, P. Szabo, and P.-J. Rigole, "State of the art performance of widely tunable modulated grating Y-branch lasers," Opt. Fiber Commun. Conf., paper TuE2, 2004.        Google Scholar

5. Byrne, D., et al. "Discretely tunable semiconductor lasers suitable for photonic integration," IEEE J. Sel. Topics Quantum Electron., Vol. 15, 482-487, 2009.
doi:10.1109/jstqe.2009.2016981        Google Scholar

6. Segawa, T., S. Matsuo, T. Kakitsuka, T. Sato, Y. Kondo, and H. Suzuki, "Full C-band tuning operation of semiconductor double ring resonator coupled laser with low tuning current," IEEE Photon. Technol. Lett., Vol. 19, 1322-1324, 2007.        Google Scholar

7. Coldren, L., K. Furuya, B. Miller, and J. Rentschler, "Etched mirror and groove-coupled GaInAsP/InP laser devices for integrated optics," IEEE J. Quantum Electron., Vol. 18, 1679-1688, 1982.
doi:10.1109/jqe.1982.1071404        Google Scholar

8. Tsang, W. T., "The cleaved-coupled-cavity (C3) laser," Semicond. Semimetals, Vol. 22, 257, 1985.        Google Scholar

9. He, J.-J. and D. Liu, "Wavelength switchable semiconductor laser using half-wave V-coupled cavities," Opt. Express, Vol. 16, 3896-3911, 2008.
doi:10.1364/oe.16.003896        Google Scholar

10. Jin, J., L. Wang, Y. Wang, T. Yu, and J.-J. He, "Widely wavelength switchable V-coupled cavity semiconductor laser with ∼40 dB side-mode suppression ratio," Opt. Lett., Vol. 36, 4230-4232, 2011.
doi:10.1364/ol.36.004230        Google Scholar

11. Zhang, S., J. Meng, S. Guo, L. Wang, and J.-J. He, "Simple and compact V-cavity semiconductor laser with 50 × 100 GHz wavelength tuning," Opt. Express, Vol. 21, 13564, 2013.
doi:10.1364/oe.21.013564        Google Scholar
