PhotonIcs and Electromagnetics Research Symposium,
also known as Progress In Electromagnetics Research Symposium
PIERS Proceedings
Published: 2015-08-28
A Novel Parallel Double Helix Loop Resonator for Magnetic Coupled Resonance Wireless Power Transfer
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)466-470
Abstract

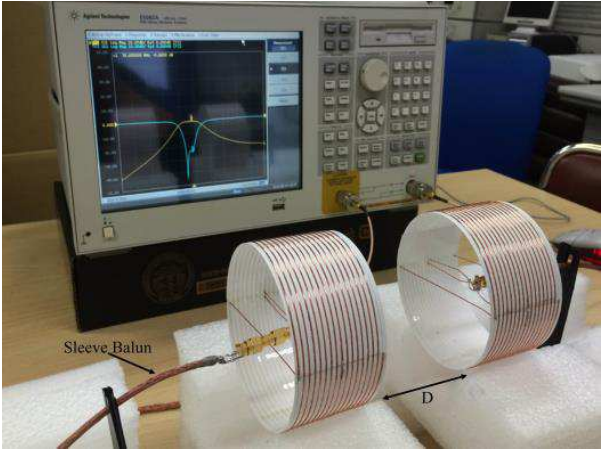

A novel parallel double helix loop resonator for magnetic coupled resonance wireless power transfer (WPT) is proposed in this paper. The various characteristics are investigated by using simulation and experiment. Compare to a same geometry size traditional structure helix loop resonator, the proposed resonator could reduce the resistance loss about 48% and improve the maximum power transfer efficiency about 8% within the strong coupled region. On the other hand, the coupling efficiency of proposed resonator used WPT system is also increased. Finally, for increase the power transfer efficiency at the region of outside of the strong coupled, a pair of matching loops are used to match the transmitting and receiving resonator to the optimal port impedance at varying distance and the measurement results shows the maximum power transfer efficiency that the system could achievable by using traditional structure helix loop resonator and parallel double helix loop resonator are 34% and 57% at the distance of 20 cm, respectively.
Citation
Koichi Tsunekawa, and Cheng Yang, "A Novel Parallel Double Helix Loop Resonator for Magnetic Coupled Resonance Wireless Power Transfer," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)466-470
References

1. Kurs, A., A. Karalis, R. Moffatt, J. D. Joannopoulos, P. Fisher, and M. Soljacic, "Wireless power transfer via strongly coupled magnetic resonances," Science, Vol. 317, No. 5834, 83-86, 2007.
doi:10.1126/science.1143254        Google Scholar

2. Sample, A. P., D. A. Meyer, and J. R. Smith, "Analysis, experimental results, and range adaptation of magnetically coupled resonators for wireless power transfer," IEEE Transactions on Industrial Electronics, Vol. 58, No. 2, 544-554, 2011.
doi:10.1109/tie.2010.2046002        Google Scholar

3. Park, J., Y. Tak, Y. Kim, Y. Kim, and S. Nam, "Investigation of adaptive matching methods for near-field wireless power transfer," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 5, 1769-1773, 2011.
doi:10.1109/tap.2011.2123061        Google Scholar

4. Kim, J., W.-S. Choi, and J. Jeong, "Loop switching technique for wireless power transfer using magnetic resonance coupling," Progress In Electromagnetics Research, Vol. 138, 197-209, 2013.
doi:10.2528/pier13012118        Google Scholar
