A Novel Tunable Dual-band Microwave Metamaterial Absorber Based on Split Ring Resonant
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)296-299
Abstract

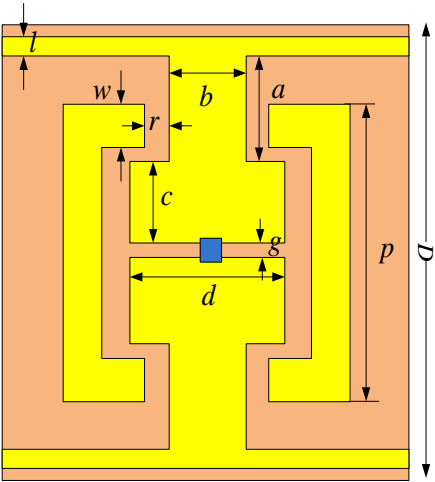

We present the design, simulation, fabrication, and measurement of a tunable metamaterial at microwave frequencies by embedding varactor diodes as an active elements inside metamaterial units. A pair of feed lines are used to control the reverse bias voltage on the diode. The proposed absorber can perform absorption peaks at two resonant frequencies. The lower resonant frequency can be tuned in a wide range by tuning the values of the diodes while the higher resonant frequency keeps unchangeable. In addition, the absorber with the thickness of λ/74 at the lowest fundamental resonant frequency is ultra-thin. We also find that the absorber is insensitive to the polarization of incident waves for a wide range of incidence angles for both TE and TM polarizations. The experimental results show excellent absorption rates under different bias voltage on the diode, which are in good accordance to the simulated results.
Citation
Bo-Rui Bian, Xiang-Kun Kong, Shaobin Liu, Ben Ma, Zhiwen Mao, Beiyin Wang, Jia-Lin Yuan, and Hai Feng Zhang, "A Novel Tunable Dual-band Microwave Metamaterial Absorber Based on Split Ring Resonant," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)296-299
References

1. Landy, N. I., et al. "Perfect metamaterial absorber," Physical Review Letters, Vol. 100, No. 10, 207-402, 2008.
doi:10.1103/physrevlett.100.207402        Google Scholar

2. Tao, H., et al. "A metamaterial absorber for the terahertz regime: Design, fabrication and characterization," Optics Express, Vol. 16, No. 10, 7181-7188, 2008.
doi:10.1364/oe.16.007181        Google Scholar

3. Shu, S., Z. Li, and Y. Y. Li, "Triple-layer Fabry-Perot absorber with near-perfect absorption in visible and near-infrared regime," Optics Express, Vol. 21, No. 21, 25307-25315, 2013.
doi:10.1364/oe.21.025307        Google Scholar

4. Cai, W., et al. "Optical cloaking with metamaterials," Nature Photonics, Vol. 4, No. 1, 224-227, 2007.
doi:10.1038/nphoton.2007.28        Google Scholar

5. Wang, H. and L. Wang, "Perfect selective metamaterial solar absorbers," Optics Express, Vol. 106, No. 21, A1078-A1093, 2013.
doi:10.1364/oe.21.0a1078        Google Scholar

6. Ma, Y., et al. "A terahertz polarization insensitive dual band metamaterial absorber," Optics Letters, Vol. 6, No. 36, 945-947, 2011.
doi:10.1364/ol.36.000945        Google Scholar

7. Bian, B., et al. "Novel triple-band polarization-insensitive wide-angle ultrathin microwave metamaterial absorber," Journal of Applied Physics, Vol. 19, No. 114, 194-511, 2013.
doi:10.1063/1.4832785        Google Scholar

8. Wang, G. D., et al. "Broadband and ultra-thin terahertz metamaterial absorber based on multi-circular patches," The European Physical Journal B, Vol. 86, No. 7, 1-9, 2013.
doi:10.1140/epjb/e2013-30879-7        Google Scholar

9. Xu, W. and S. Sonkusale, "Microwave diode switchable metamaterial reflector/absorber," Applied Physics Letters, Vol. 103, No. 3, 31-902, 2013.
doi:10.1063/1.4813750        Google Scholar

10. Zhao, J., et al. "A tunable metamaterial absorber using varactor diodes," New Journal of Physics, Vol. 15, No. 4, 43-49, 2013.
doi:10.1088/1367-2630/15/4/043049        Google Scholar
