Widely Tunable Inductors Utilizing Transmission-line with Variable Distributed Load Capacitor for Millimeter-wave Applications
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)378-382
Abstract

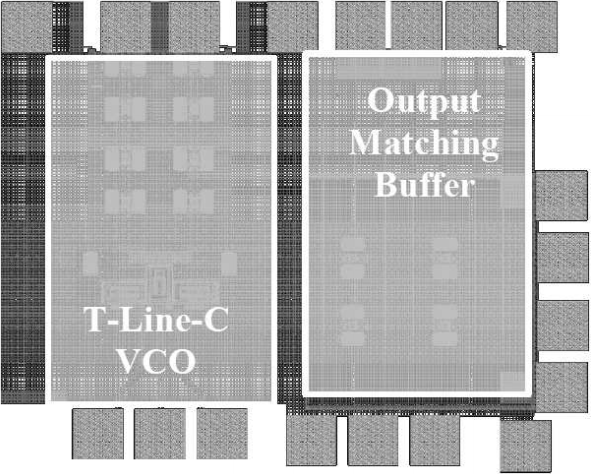

This paper proposes a widely tunable inductor realized by transmission lines (T- Line) for applications under 60 GHz. The inductor consists of several L-branch formed by short T-Line segments and variable distributed load capacitors. With changeable load capacitance, the equivalent inductance of whole T-Line would also be tunable. For conceptual demonstration, a prototype T-Line-C VCO is implemented for comparison to the conventional LC VCO. With the same ±50% capacitance variation rate, the traditional LC VCO with lumped inductors for comparison only achieves 11.6% frequency tuning range from 60.5 GHz to 67.6 GHz; However, the demonstrated VCO based on the proposed tunable T-Line inductors improve the frequency tuning range to 25.4% from 53.7 GHz to 68.4 GHz.
Citation
Huailin Liao, Xiucheng Hao, Yixiao Wang, and Le Ye, "Widely Tunable Inductors Utilizing Transmission-line with Variable Distributed Load Capacitor for Millimeter-wave Applications," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)378-382
References

1. Li, L., P. Reynaert, and M. Steyaert, "Design and analysis of a 90 nm mm-Wave oscillator using inductive-division LC tank," IEEE J. Solid-State Circuits, Vol. 44, No. 7, 1950-1958, 1950.
doi:10.1109/jssc.2009.2020245        Google Scholar

2. Jimenez, J. L. G., F. Badets, B. Martineau, and D. Belot, "A 56 GHz LC-tank VCO with 17% tuning range in 65 nm bulk CMOS for wireless HDMI applications," IEEE Radio Frequency Integrated Circuits Symp. Dig., 481-484, 2009.        Google Scholar

3. Chiu, H. C. and C. P. Kao, "A wide tuning range 69 GHz push-push VCO using 0.18 µm CMOS technology," IEEE Microw. Wireless Compon. Lett., Vol. 20, No. 2, 97-99, 2010.
doi:10.1109/lmwc.2009.2038523        Google Scholar

4. Liu, G., R. Berenguer, A. Akhiyat, K. Kamtikar, and Y. Xu, "Configurable MCPW based inductor for mm-Wave circuits and systems," IEEE International Symposium on Circuits and Systems, 1113-1116, 2010.
doi:10.1109/iscas.2010.5537329        Google Scholar

5. Decanis, U., A. Ghilioni, E. Monaco, A. Mazzanti, and F. Svelto, "A low-noise quadrature VCO based on magnetically coupled resonators and a wideband frequency divider at millimeter waves," IEEE J. Solid-State Circuits, Vol. 46, No. 12, 2943-2955, 2011.
doi:10.1109/jssc.2011.2162468        Google Scholar

6. Xu, Z. W., Q. J. Gu, Y. C. Wu, H. Y. Jian, and M.-C. F. Chang, "A 7078-integrated CMOS frequency synthesizer for W-band satellite communications," IEEE Trans. Microw. Theory Tech., Vol. 59, No. 12, 3206-3218, 2011.        Google Scholar
